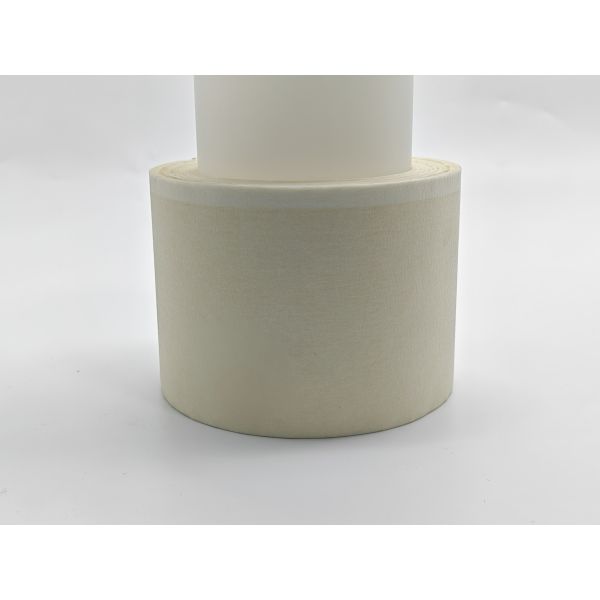

White Rubber Masking Tape
Description
Made of crepe paper substrate and rubber adhesive, MST117 white masking tape has a total thickness of 145μm complying with national standards. Its 180° peel adhesion is 7N with uniform white appearance and stable physical properties.
Featuring proper adhesive strength, the tape peels off cleanly without residue and delivers excellent masking and surface protection. With rubber glue construction, it can be stored for up to 6 months under specified cool storage conditions and resists deterioration from dampness or sunlight.
Widely applied in electronics and general industrial fields, it serves for temporary workpiece positioning, process masking protection and regular packaging fixation during component processing and small-parts packing procedures.
Applications
-
Masking and protection in electronics assembly
-
General industrial positioning and packaging
-
Temporary surface protection during painting or coating
-
Bundling and fixing in manufacturing processes
-
Suitable for applications requiring heat resistance up to 120°C for 30 minutes
Structure
| NO |
Material |
Remarks |
| 1 |
Structure |
Crepe Paper |
|
| 2 |
Adhesive Type |
Rubber |
Physical Parameters
| Parameter |
Value |
Test Standard |
| Total Thickness |
140 ± 10 μm |
GB/T7125-2014 |
| Peel Strength (180°) |
7N/ 25 mm |
GB/T2792-1998 |
| Color |
White |
|
Test Conditions
Company Introduction
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
FAQ
1. What is the temperature resistance?
Our high-temperature PET tape can withstand continuous temperature up to 180℃.
2. Will it leave residue after peeling?
No residue. It can be peeled cleanly without damaging the surface.
3. What are your available sizes?
Thickness: 0.025T–0.25T
Max width: 1300mm
Standard widths: 500mm, 1040mm, 1090mm, 1280mm
4. What colors do you have?
Green, yellow, red, black, grass green, transparent.
5. What about adhesion?
Adhesion: 50g–2000g, can be customized.
6. What liner do you use?
Fluorine release film for stable and easy peeling.
7. What are the main applications?
LCD/glass protection, housing painting masking, high-temperature masking, silicone rubber bonding.
8. Can you provide double-sided tape?
Yes, we supply double-sided silicone PET tape with fluorine release film.
9. Can I get free samples?
Free samples are available, buyer only pays shipping cost.
10. What certifications do you have?
ISO 14001:2015.
11. What is the production lead time?
Normally 7–10 working days.
